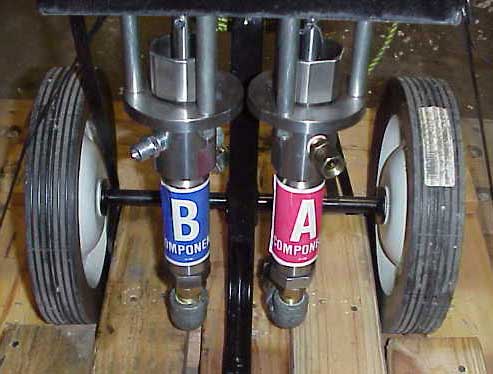

Stainless steel double cylinder twin piston pump, positive displacement, air motor powered, high pressure, with intake hoses and drop tube intake tubes mounted on two-wheeled transport dolly.

Cylinders and ratios - 2 cylinders at 1:1 ratio – stainless steel
Fluid Output – gallons per hour - 21 gal/hr
Fluid Output – gallons per minute - 0.36 gpm
Pump cycles per minute - 60
Pump gallons per cycle - 0.002942
Maximum fluid output pressure - 2000 psi
Wetted parts description - stainless steel, PTFE, UHMWPE

Height - 36 inches
Length - 12 inches
Width - 12 inches
Weight - 60 lbs Crate size: 24” x 24” x 40”

Air volume requirement - 20 cpm (will vary per operating pressures and durations)
Inlet max air pressure - 150 psi

DOCUMENTS

Air Motor Schematic Diagram
Air Motor Parts List
Air Motor Manual

Displacement Pump Repair Manual
Displacement Pump Schematic Diagram
Falcon Pump Operations Manual
